Whirlpool Washer Control Board W11201289 Replacement 1‑Year Warranty

Description

Product Overview

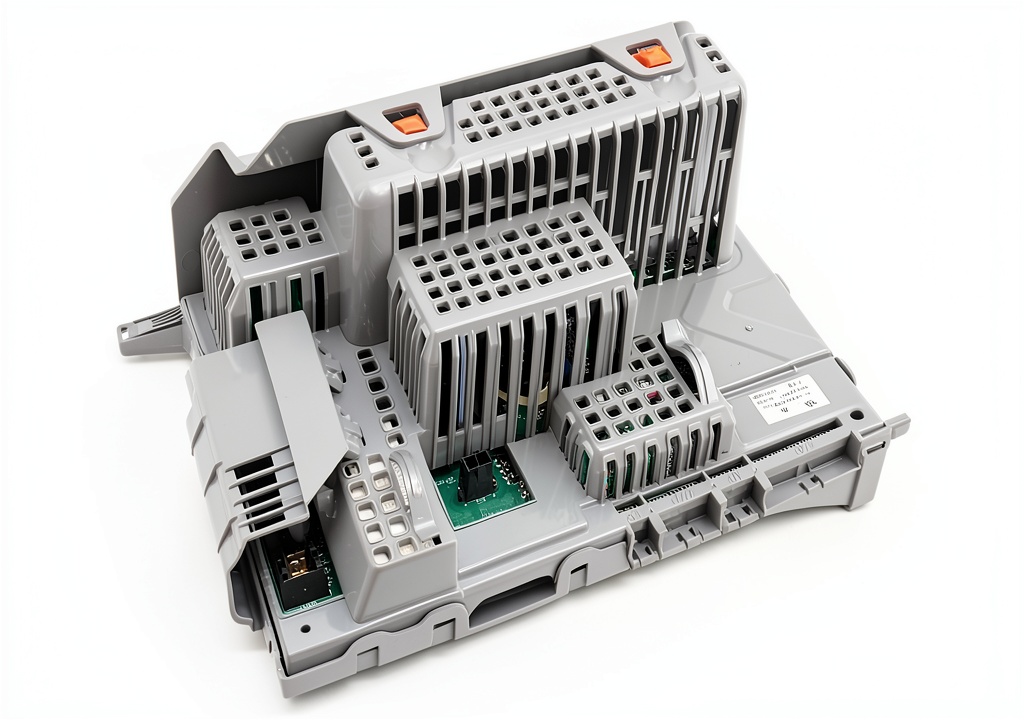

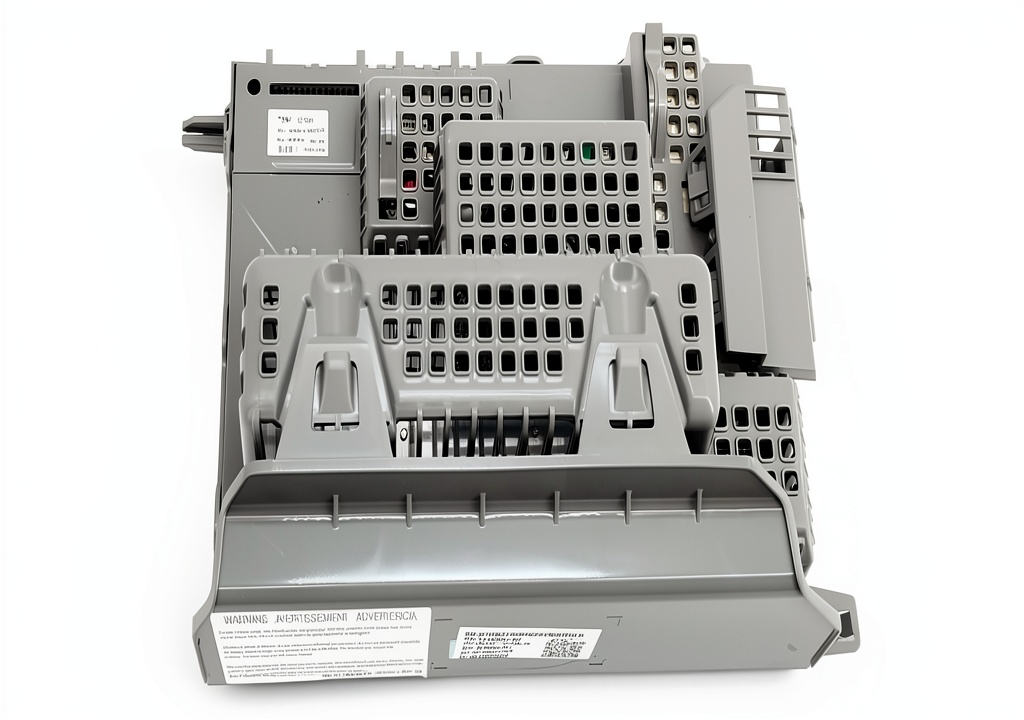

The Whirlpool Washer Control Board W11201289 is engineered as a precise OEM replacement that mirrors the original circuitry and firmware of the factory-installed unit. Constructed from high‑temperature resistant epoxy resin and reinforced copper traces, the board delivers consistent power distribution to the motor, water inlet valves, and sensor modules. Its compact 1 × 1 × 1‑inch form factor fits seamlessly into the existing control cavity, eliminating the need for modifications or additional mounting hardware. The board supports a broad spectrum of Whirlpool models, including part numbers 4591209, PS12349103, and many others listed in the compatibility chart. With a 1‑year limited warranty, customers receive confidence that the component will perform reliably under typical residential laundry cycles, handling everything from delicate hand‑wash programs to heavy‑duty bulk loads.

Usage

Designed for both residential and light‑commercial environments, this control board excels in settings where consistent washing performance is essential. Homeowners can install the board themselves using basic tools—screwdriver, multimeter, and the included wiring diagram—making it an ideal solution for those comfortable with moderate DIY projects. Professional appliance technicians also appreciate the board’s plug‑and‑play architecture, which reduces service time and labor costs. The board is compatible with standard 120 V household power and integrates with Whirlpool’s built‑in diagnostic protocols, allowing users to troubleshoot error codes quickly. Whether the washer is located in a family kitchen, a laundromat, or a small boutique hotel laundry room, the board’s robust design ensures reliable operation across diverse usage patterns.

Why Choose Us

Choosing this control board means selecting a part that adheres to Whirlpool’s exacting quality standards. Each unit undergoes rigorous testing for voltage tolerance, signal integrity, and thermal performance before it leaves the factory, guaranteeing that it meets or exceeds the original equipment specifications. Our supply chain is managed to maintain consistent inventory levels, so customers receive genuine parts without long back‑order delays. In addition, the 1‑year warranty provides a safety net against manufacturing defects, and our dedicated support team is available to assist with installation guidance, troubleshooting, and warranty claims. By sourcing directly from authorized distributors, we eliminate the risk of counterfeit components that can cause premature failure or safety hazards.

Key Features

• Exact OEM fit ensures seamless integration with existing washer hardware.
• Durable epoxy and copper construction resists heat and moisture for long‑term reliability.
• Supports multiple Whirlpool model numbers, reducing the need for multiple spare parts.
• Simple plug‑and‑play installation minimizes downtime and service costs.
• Backed by a 1‑year warranty and responsive customer support for peace of mind.

FAQ

What models are compatible with the W11201289 control board?

The board is compatible with a wide range of Whirlpool washers, including part numbers 4591209, PS12349103, W10874763, W10885576, W10888202, W10899770, W10903842, W10908737, W10920600, W11096951, and W11195090. A full compatibility list can be found in the product manual or by contacting our support team.

How do I know if the control board is the cause of my washer issues?

Common symptoms of a failing control board include erratic cycle starts, failure to advance through wash phases, unresponsive buttons, and error codes related to motor or valve control. Before replacing the board, verify that power supply, wiring connections, and related sensors are functioning correctly. Our troubleshooting guide provides step‑by‑step diagnostics to confirm the board’s condition.

Can I install the board myself, or do I need a professional?

The board is designed for a plug‑and‑play installation, which most competent DIYers can complete with basic tools. However, if you are uncomfortable working with electrical components or lack the necessary tools, we recommend hiring a certified appliance technician to ensure safety and proper operation.

What does the 1‑year warranty cover?

The warranty covers any defects in materials or workmanship that arise under normal use conditions within one year of purchase. It does not cover damage caused by improper installation, external power surges, or misuse. If a warranty claim is necessary, contact our support team with the purchase receipt and a description of the issue.

Is there any software or firmware update required after installation?

The control board comes pre‑programmed with the latest firmware compatible with the supported Whirlpool models. No additional software updates are required for standard operation. In rare cases where a model‑specific update is needed, our technical support can provide the necessary files and instructions.
